TECHNICAL PARAMETERS
| Model |
SF3015M |
| Working Area |
3000mm*1500mm |
| Fiber Laser Power |
500W/750W/1000W/1200W/1500w/2000w/3000W |
| X axis stroke |
3000mm |
| Y axis stroke |
1500mm |
| Z axis stroke |
100mm |
| X/Y position accuracy |
±0.05mm |
| X/Y Reposition Accuracy |
±0.03mm/m |
| X/Y axis Max Acceleration |
0.8G |
| Max Velocity of Movement |
100m/min |
| Machine Weight |
4500kg |
| Machine Size |
5500mm*3760mm*2000mm |
| Transmission: |
Precise pinion and rack ,dual-drive transmitting |
PRODUCT FEATURES
1.Stable and reliable light path system and control system.
2. Imported original fiber laser generator with great and stable performance to have lifespan over 100,000 hours
3. cutting metal sheets and metal pipes,cost saving and high performance
4. Imported high performance reducer,gear and rack
| Materials |
Thickness |
| Stainless Steel |
0.4-10mm |
| Carbon Steel |
0.4-20mm |
APPLICATION INDUSTRY

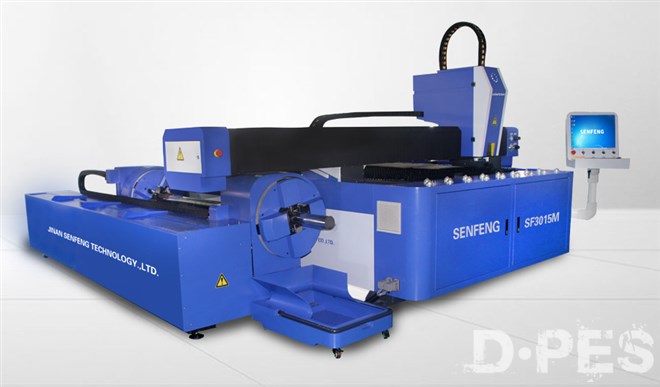

Pipe fiber laser cutting machine SF3015M is specially for cutting carbon steel plates(pipes),0.4-10mm stainless steel ,galvanized steel plates and pipes ,electrolytic zinc-coated steel ,0.4-8mm aluminum sheet and 0.4-6mm brass and other thin metal materials .
We are committed to providing high quality, reliable performance SENFENG laser equipments to our customers all over the world, for more detailed information about our laser machines, please feel free to contact us! we welcome your inquiries and look forward to working with you in good faith.
