Product Name:CO2 Laser Engraving and Cutting System SF1390I

Product Details:
Model:
SF1390I
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 5780.00-10510.00 /
Shipping Terms:
1
Shippment Port:
Qingdao
Payment Terms:
T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
700 Set/Sets per Year
Delivery Time:
7-15 days receipt of advance payment
Packaging:
Standard wooden box

Detailed Product Description:

TECHNICAL PARAMETERS
Model SF1390I Co2 laser Engraving and Cutting System
Working Area 1300mm*900mm
Working Table Blade or Honeycomb
Working speed ≦600mm/s
Laser Type Sealed co2 laser tube
Laser Power 60W/80W/100W/150W
Positioning Accuracy ±0.05mm(without red dot)
Image Format Supported BMP,PLT,DST,AI,DXF,etc
Cooling System Constant temperature water cooling and protecting system
Power Supply

AC 110-220±10%, 50-60Hz

Working Temperature 0-45℃
Working Humidity 5%-95%
PRODUCT FEATURES

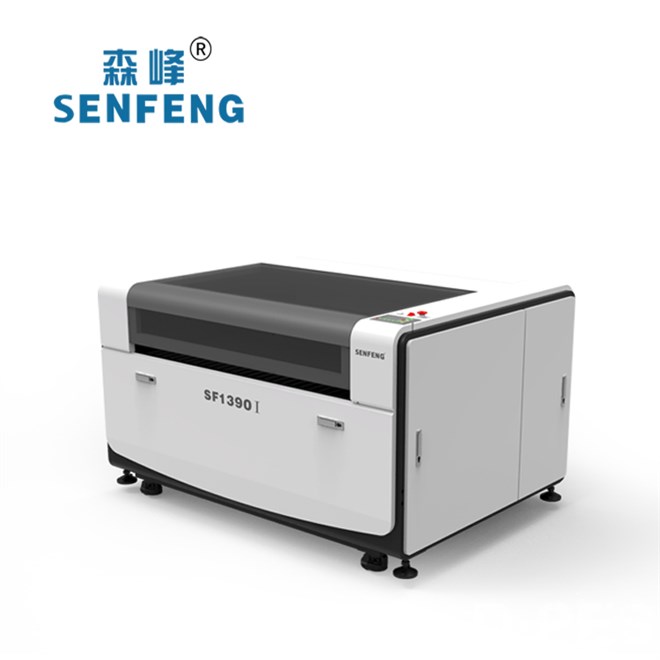

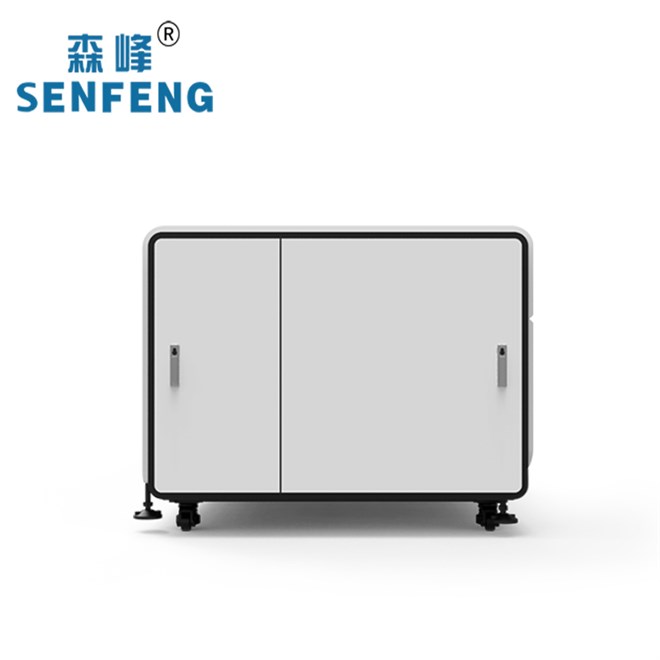

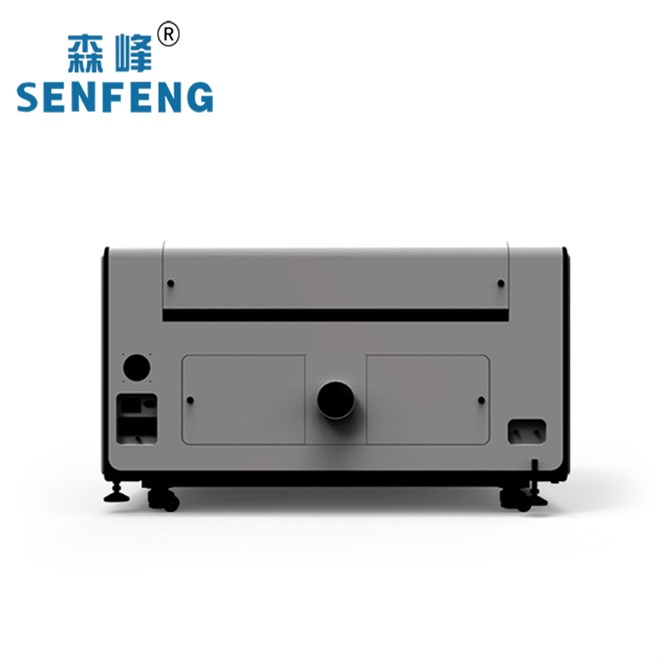

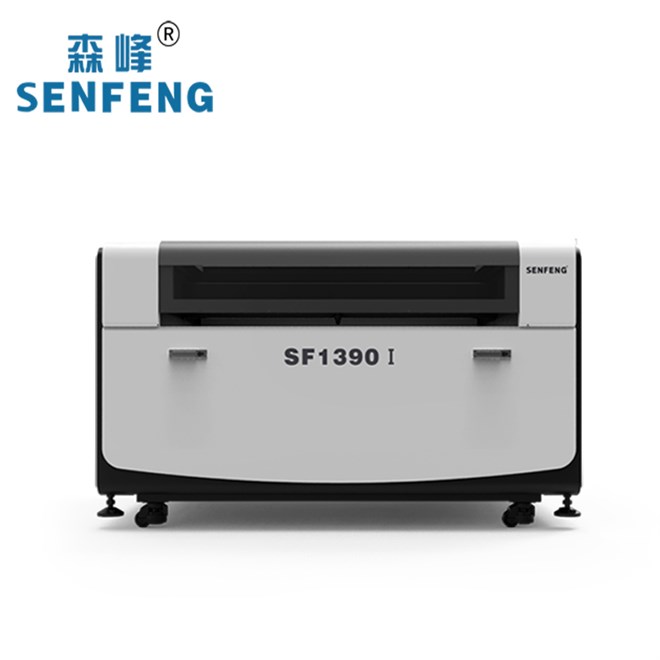

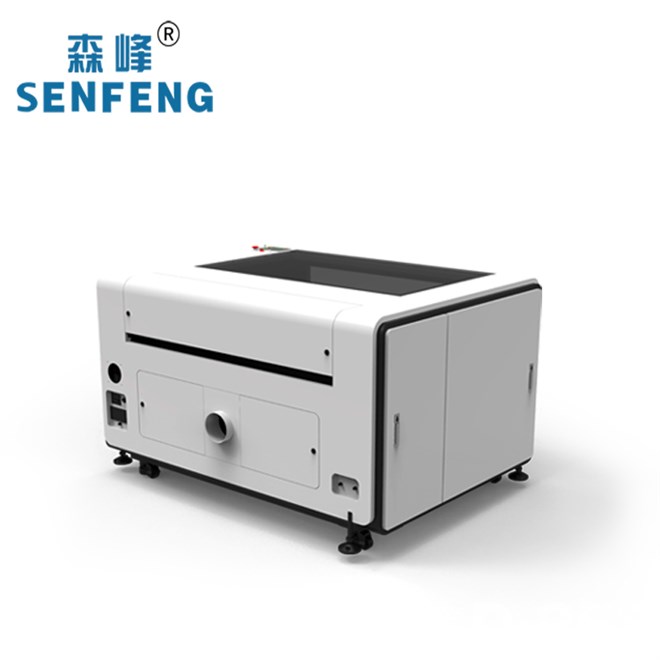

SF1390I co2 laser cutter

SF1390I Co2 laser Cutting and Engraving System is equiped with co2 laser tube, can be used for cutting nonmetal materials such as acrylic, plastic, paper, wood, plywood, MDF, fabric, leather, etc; and can engrave on nonmetal materials such as stone , glass, acrylic, wood, bamboo, rubber, leather, etc.

Feature of the co2 laser cutting and cutting system:

1. Adopt DSP digital controlling technology,self-design laser power supply,incorporate designed frame and structure to guarantee stable work.
2.The newest software is matched to AutoCAD,coreIDRAW CAD and all other graphics processing softwares for outputing original graphics.
3.This series machines firstly use USB port data interface which supports hot-plugging and momentary data transmission to realize high efficiency without accounting computer resource.
The LCD controlling panel brings friendly computer-human interface and easy operation.
4.It uses USB port data interface with large mass storage device to provide high working speed and efficiency.

APPLICATION INDUSTRY

Co2 laser engraving and cutting system is applied in garment, leather, cloth toys, computer embroidery cutting , mould , crafts, bamboo and wood, advertising and building decoration, packaging and printing, paper products, etc.

Applicable materials:

Acrylic, plastic, wood, plywood, MDF, rubber, leather, cloth, woollens, crystal, tile, glass, bamboo, etc.

We are committed to providing high quality, reliable performance SENFENG laser equipments to our customers all over the world, for more detailed information about our laser machines, please feel free to contact us! we welcome your inquiries and look forward to working with you in good faith.
